NOVUX™ from CommScope

NOVUX™ is the first modular FTTH ecosystem designed to accelerate and optimize the deployment of fiber.

Built on a modular platform with standardized components and smart features, NOVUX™ makes it fast and easy to build fiber infrastructure.

Learn more about NOVUX™

Knowledge and experience recommends NOVUX™

Morten Strøhemann, Head of Procurement & Inside Sales at the Danish division of Alcadon, states:

Thats why we recommend NOVUX™ closures from CommScope:

The simpler design (75% fewer components compared to similar solutions) simultaneously increases the number of possible configurations by 50%. Only a few decisions need to be made before you're up and running!
The new Octopus™ gel-sealing technology supports a wider range of cable diameters while providing optimal sealing, even with multiple re-openings.
Scalability. It’s easy to use NOVUX now – and when the installation needs to be expanded.
NOVUX™ is on the lower end of the price scale compared to other CommScope closures.

You should choose CSC for applications where you need to access the closure more frequently. SRC is more commonly used for drop applications.

Frequently Asked Questions about NOVUX™ from CommScope:

1. What is NOVUX™?

Novux™ is CommScope's new generation of closures, focusing on modularity, scalability, quick and easy installation, a reduced number of components and a lower environmental footprint.

Novux™ offers 50 times more combination options than previous systems, based on 75% fewer components.

Novux™ is ideal for faster and uncomplicated installations that do not require specially trained technicians.

2. Which product range is NOVUX™ replacing?

Novux™ is a new product line from CommScope and is the most flexible FTTX platform in the industry.

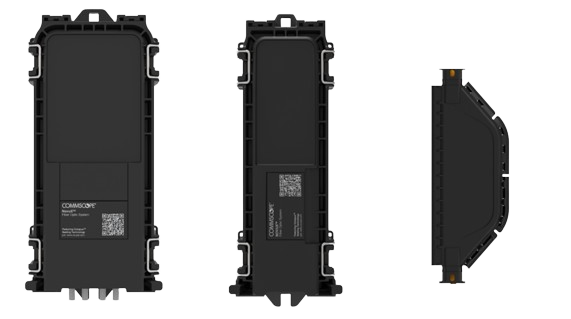

The Novux™ series, SRC, covers the functions for, among others, OFDR and Gator.

3. Which tools do I need for the installation of NOVUX™?

The Novux™ closures are specifically designed for use and installation without the need for special tools.

For preparation and splicing, the technician's standard fiber tools are used.

4. What about the bending radius of the fiber?

Novux™ is compatible with G657. It is not designed for a D-fiber due to the bending radius in the compact NOVUX closure.

Feel free to ask if there is any doubt regarding a specific application.

If looping tubes in CSC40/100, they must be soft tubes.

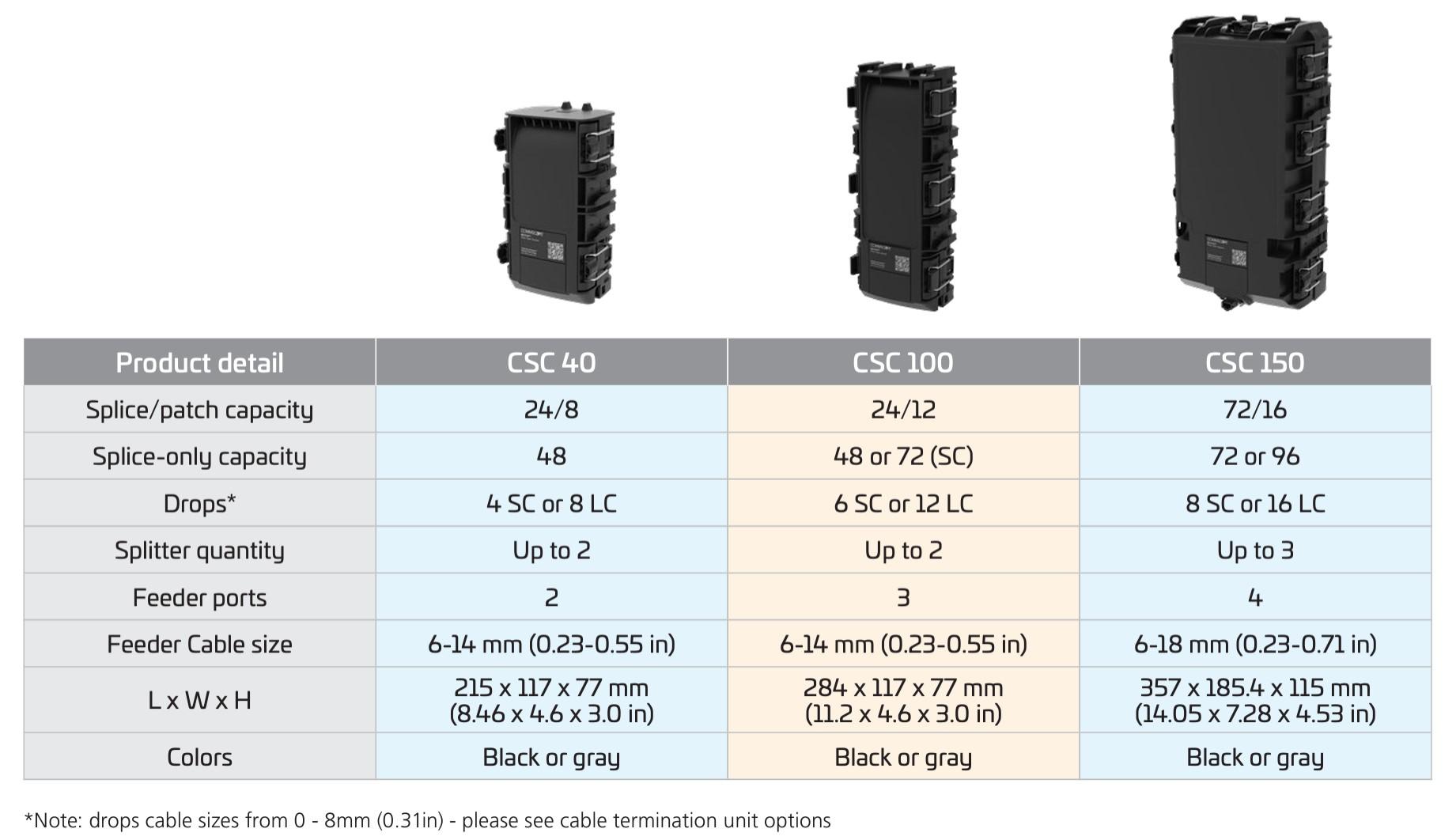

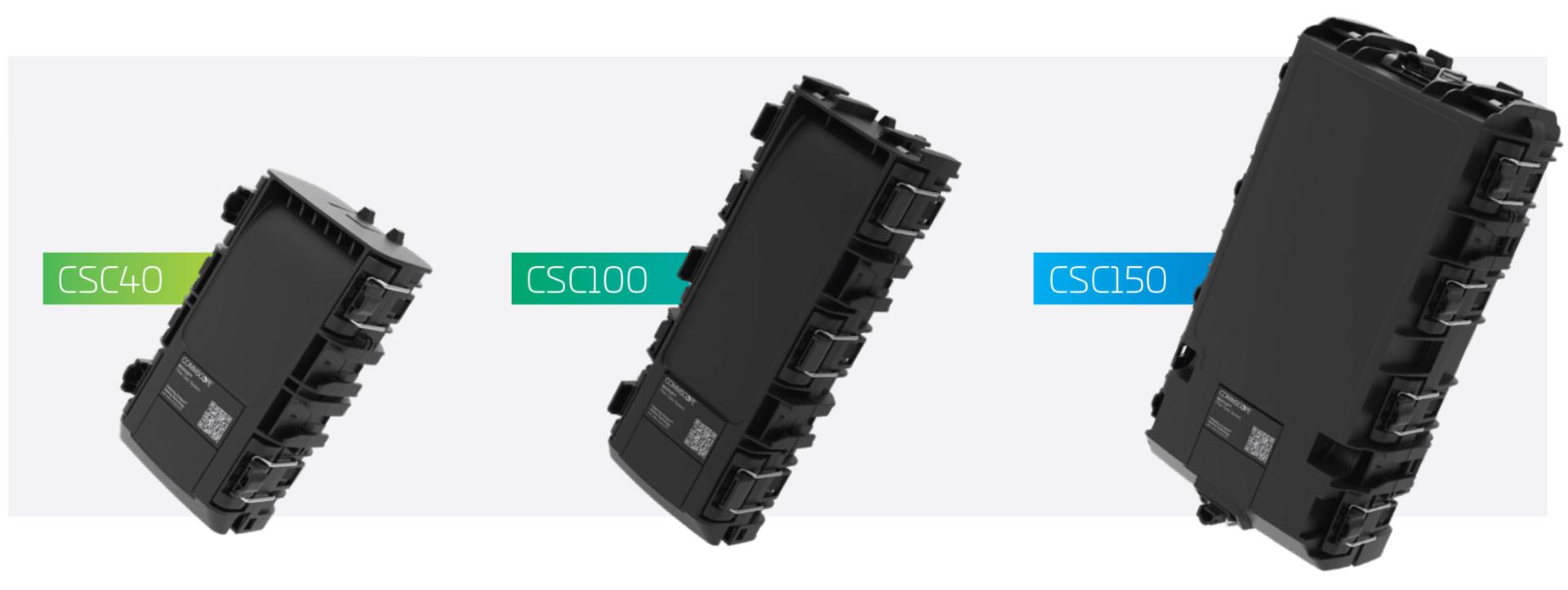

The NOVUX™ CSC-family consists of three different sizes. There is also one for your task!

BUDI2 vægboks fra Commscope til splidsning og patch

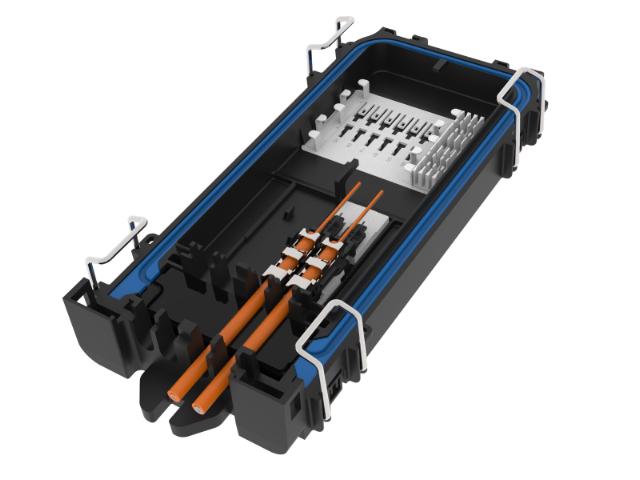

CSC40

Compact closure with capacity for up to 24/48 splices and the option for patching 6x LC duplex/6x SC SX adapters.

2 round ports (cable min ø6mm) + 4 multi-out ports (8 small cables (≤6.2mm))

Learn more about NOVUX™ CSC40 on commscope.com

FIST GCO2 hårdfør splidseboks fra Commscope

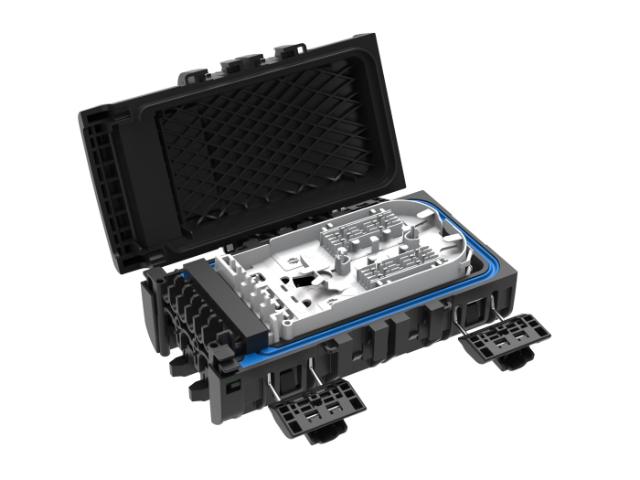

CSC100

Compact closure with capacity for up to 48/72 splices and the option for patching 6x LC duplex/6x SC SX adapters.

3 round ports (cable min ø6mm) + 6 multi-out ports ≤8mm (12 small cables ≤6.2mm)

Learn more about NOVUX™ CSC100 on commscope.com

FACT skuffe er kompakt ODF til splidsning og patch

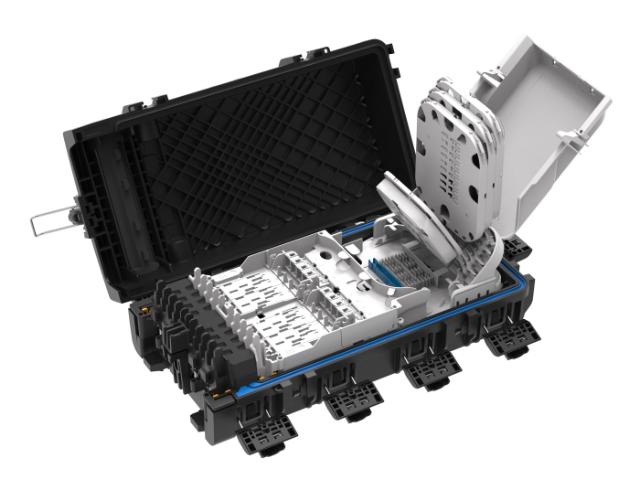

CSC150

Compact closure with capacity for up to 72/96 splices and the option for patching 8x LC duplex/8x SC SX adapters.

4 round ports (cable min ø6mm) + 8 multi-out ports ≤8mm (16 small cables ≤6.2mm)

Learn more about NOVUX™ CSC150 on commscope.com

NOVUX™ is packed
with smart features

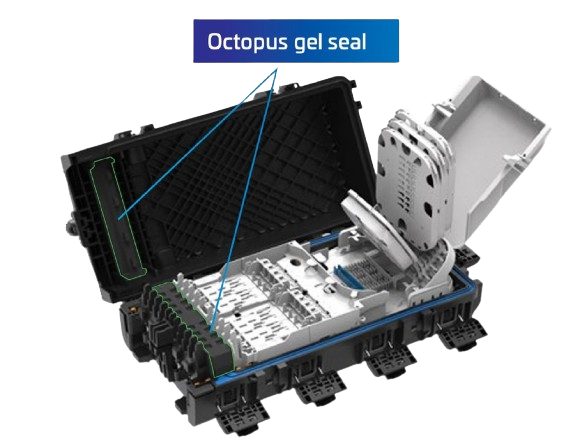

Advanced Octopus™ gel sealing

Quick access to the closure, better protection in harsh environments, and a wider range of cable diameters. The reason is the special gel-sealing technology, which is more flexible and resistant, even with multiple reopenings.

Get the "Octopus™ gel-feeling" in this video

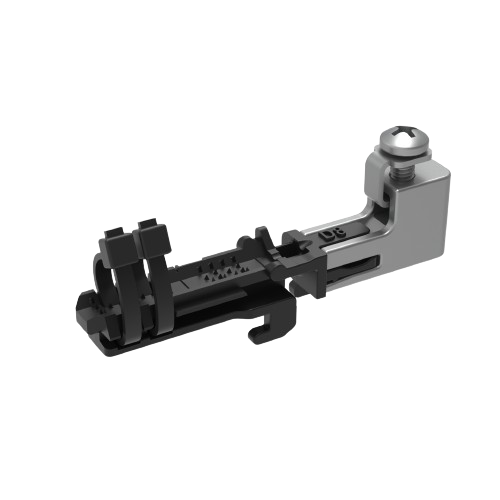

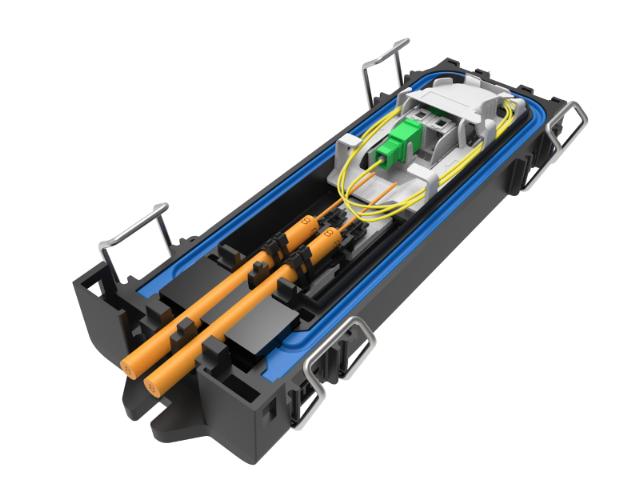

CTU/Cable Termination Unit minimizes time consumption

By pre-installing the fiber in the CTU, installation in the NOVUX™ sleeve is easy and quick.
SAVE TIME: Open the sleeve – click the CTU into place – close the sleeve – done!

Different types and sizes are available.
